ON BOARD WEIGHING SYSTEM

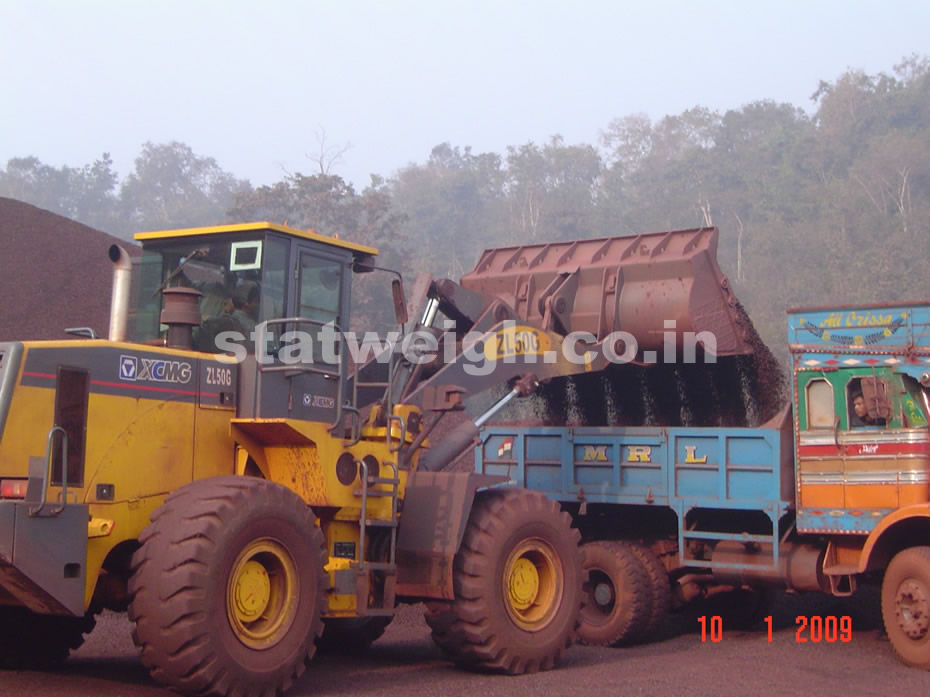

On Board Weighing System for Wheel Loaders / OnBoard Dumper Weighing System (GUARD–53) consists of a very high capacity pressure transducer fixed to the inlet port of the vehicle's lifting cylinder. The hydraulic pressure in the lifting cylinder is proportional to the load carried in the bucket.
The output of the pressure transducer is connected to our Indicator which is mounted inside the operator’s cabin. This Indicator works on 24V DC. The Indicator displays the instantaneous weight of material in the bucket and also totalises this weight reading.
This Totalised quantity is subtracted from the target load which is set by the operator. This allows the operator to control the quantity of material into the truck or wagon in the final stages of loading, thereby avoiding over-loads.
The data can be transferred from the loader weighing module, to a PC, with an ordinary pen drive.
OnBoard Weighing System Features
- Most effective on-board weighing system for wheel loaders.
- Direct display of material loaded into trucks / wagons.
- Saves time and fuel, on load correction re-runs by trucks.
- Saves money on wagon over-loading, by effective load monitoring.
- Monitors the loader operating efficiency.
- Prevents over-loading / under-loading into trucks / wagons
- No compromise on loader operation or speed.
- Easy to operate, wide screen and large display console, with touch screen.
- Quick data transfer from loader weighing module to pc with an ordinary pen drive.
- Data can be analysed, date wise or truck wise or material wise etc.
- Installation in 5 hours, including calibration.
 Onboard

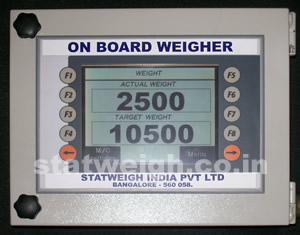

Weighing System Display Unit |
 Onboard

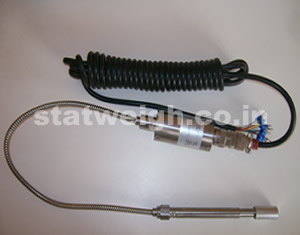

Weighing System Load Sensor |
 Onboard

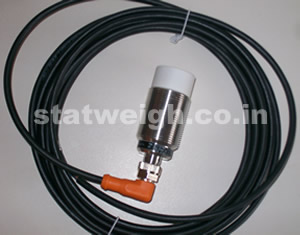

Weighing System Position Sensor |
 Touch

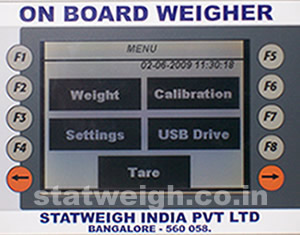

Screen Main Menu |
 Touch

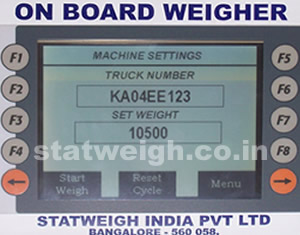

Screen Menu Set Target |
 Actual and Target Weight Display |
 On Board
Dumper Weighing System |
||
For more information about on board weighing system contact us
